CK45 Chrome Plated Rod with 20 to 50 Micron Chrome Layer Thickness

CK45 Chrome Plated Rod with 20 to 50 Micron Chrome Layer Thickness

CK45 Chrome Plated Rod with 20 to 50 Micron Chrome Layer Thickness offered by China manufacturer zhaotu machinery. Buy  CK45 Chrome Plated Rod with 20 to 50 Micron Chrome Layer Thickness directly with low price and high quality.

Product Description:

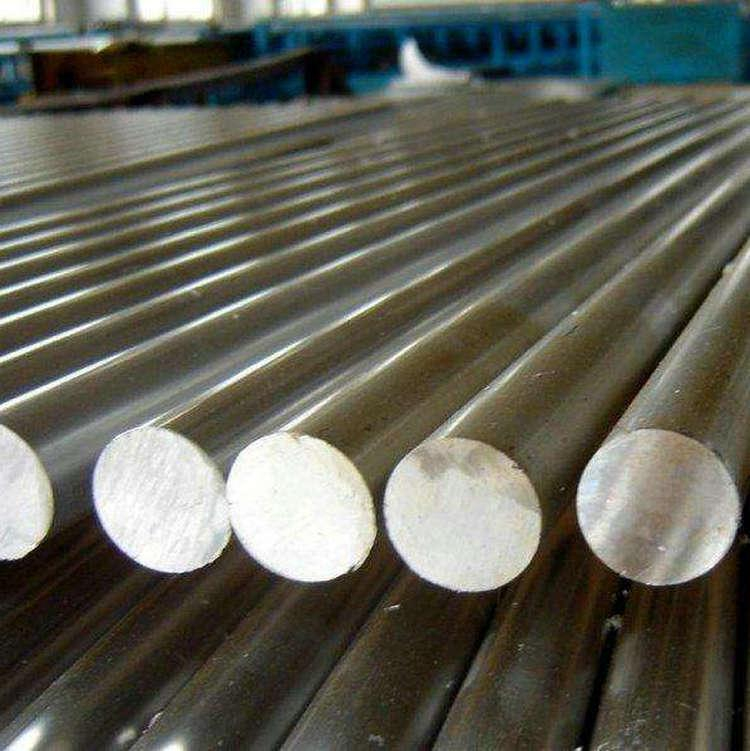

Hard Chrome Plated Piston Rod processed by Hot rolled, Peeled, (Induction hardened), Surface grinded, Hard chrome plated etc.. more than ten processing, made by steel bar in material CK45, 20MnV6, 42CrMo4, SUS304, SUS316 etc.. Dia. Precision level of f7 tolerance, surface hardness min. HV900. Chrome layer thickness 20-50micron can be choice, Salt spray test 60-90hours. Induction hardened hardness HRC55±2, hardened depth 0.5-3.5mm can be choice.

Item	Hard Chromed Rod	Induction Hardened Chromed	Nickel and Chrome Plating Bars
Steel Grade	C45E (EN 10083)	C45E (EN 10083)	C45E,20MnV6/38MnVS6
Tolerance	ISOf7	ISOf7	ISOf7
Roundness	Diameter tolerance / 2	diameter tolerance / 2	diameter tolerance / 2
Standard Length	-for Ø ≤ 60 mm: 5600 -6200mm -for Ø≥60 mm: 5800 -7200mm Upon request: special lengths on all diameters	- for Ø ≤ 60 mm: 5600 – 6200 mm - for Ø ≥ 60 mm: 5800 – 7200mm Upon request: special lengths on all diameters	Up to 6000 mm Upon request: special lengths on all diameters
Surface Roughness	Ra max. 0.20 µm (statistic average: 0.05-0.15 µm)	Ra max. 0.20 µm (statistic average: 0.05- 0.15 µm)	Ra max. 0.20 µm (statistic average: 0.05-0.15 µm)
Chrome Layer Thickness	min. 900 HV (0.1)	min. 900 HV (0.1)	min. 25 µm
Straightness	≤ Ø16 mm: max. 0.3 mm: 1000 mm > Ø16 mm: max. 0.2 mm: 1000 mm	≤ Ø16 mm: max. 0.3 mm: 1000 mm > Ø16 mm: max. 0.2 mm: 1000 mm	max.0.20 mm/1000 mm

INSPECTION:

As one of the biggest honed tube piston rod manufacturers in China, we equipped with advanced production facilities and inspection facilities for honed pipe manufacturing and inspection. Below manufacturing machines for steel honed tubing and chrome plated hard bar.

Company Show

Major in Honed tube, Chrome rod, Cylinder parts, 18+ years’ experience. Factory was established under modern management system and technologies in 2003. It covers an area of 40,000 sq. meters, all processing control include cold-drawn, heat treatment, honing, peeling, grinding, polishing. There ’re 60+ sets of advanced equipment and 70+ skilled technical workers, annual output over 20,000 tons.

Our Services

<Could make product for customer according to customer samples or drawings

<Submit samples with official inspection reports including  material report, mechanical property report and dimensional report

<Can provide the third party inspection report

<Could provide at least one year’s quality guarantee after customer receives the products

<We could supply storage service for customer if required.
