Hydraulic cylinders used in marine equipment, food processing machinery, chemical handling systems and outdoor industrial applications may be exposed to moisture, chemicals, salt spray and other corrosive conditions.
In these environments, selecting the right piston rod material and surface treatment is essential. A conventional carbon steel chrome plated rod may not always provide the corrosion resistance required by the application.
A SUS304 chrome plated rod combines the corrosion resistance of stainless steel with the surface properties of hard chrome plating, making it a potential solution for hydraulic cylinders and other applications where both surface durability and resistance to corrosion are important.
This article explains the properties, applications and selection considerations of stainless steel chrome plated rods.
A SUS304 chrome plated rod is a piston rod manufactured from SUS304 stainless steel and finished with a chrome-plated surface.https://www.ztusteel.com/Chrome-Plated-Rod-Manufacturer-in-China-pd153724438.html
The rod generally consists of two main material layers:
SUS304 stainless steel substrate: Provides corrosion resistance and mechanical support.
Chrome-plated surface: Provides a hard, wear-resistant working surface and helps protect the rod during operation.
The combination is designed for applications where the rod may be exposed to moisture, corrosive substances or demanding working conditions.
However, it is important to understand that chrome plating does not automatically make a rod completely corrosion-proof. Actual performance depends on the stainless steel grade, chrome plating quality, surface finish, operating environment and maintenance conditions.
SUS304 is an austenitic stainless steel widely used in industrial equipment because of its good corrosion resistance, formability and general availability.
Compared with ordinary carbon steel, SUS304 offers several advantages:
SUS304 contains chromium, which helps form a passive oxide layer on the steel surface. This provides better resistance to atmospheric moisture and many mildly corrosive environments than conventional carbon steel.
Stainless steel is commonly used in equipment where cleanliness and resistance to contamination are important, including certain food processing and packaging applications.
SUS304 provides a combination of strength, toughness and corrosion resistance suitable for many industrial components.
SUS304 may be used in outdoor machinery and some marine-related applications, although the exact environment must be evaluated carefully.
Important: SUS304 is not suitable for every corrosive environment. Strong chlorides, seawater exposure and certain chemical conditions may require a different stainless steel grade, such as SUS316, or another specialized material.
The chrome-plated surface is important because a hydraulic piston rod must operate repeatedly through a seal and often against a bearing or guide.
A properly manufactured chrome plated rod can provide:
High surface hardness
Improved wear resistance
Smooth surface finish
Reduced friction during reciprocating movement
Better resistance to surface damage
Improved compatibility with hydraulic seals
For hydraulic cylinder applications, the surface finish and dimensional accuracy of the rod are especially important because the rod directly interacts with the sealing system.
The choice between stainless steel and carbon steel depends on the working environment, mechanical requirements and budget.
| Property | SUS304 Chrome Plated Rod | Carbon Steel Chrome Plated Rod |
|---|---|---|
| Corrosion resistance | Generally better | Depends strongly on chrome plating and maintenance |
| Base material | SUS304 stainless steel | Commonly CK45, C45 or similar carbon steel |
| Surface treatment | Chrome plating | Chrome plating |
| Outdoor applications | Suitable for selected environments | Requires appropriate protection |
| Marine or salt exposure | Better than ordinary carbon steel, but grade selection is important | More vulnerable if plating is damaged |
| Cost | Usually higher | Usually more economical |
| Typical use | Corrosive or hygiene-sensitive environments | General hydraulic and industrial applications |
The stainless steel substrate can provide an additional level of corrosion resistance, especially if the chrome surface is damaged. However, the final performance still depends on the complete manufacturing process.
SUS304 chrome plated rods may be considered for hydraulic and industrial equipment operating in environments where corrosion resistance is important.
Typical applications include:
Used in selected hydraulic cylinders for industrial machinery, outdoor equipment and corrosive working environments.
Used in applications where stainless steel is preferred for cleanliness and resistance to moisture.
Suitable for selected moving components exposed to washing, humidity or frequent cleaning.
May be used in selected applications exposed to humid or coastal conditions. For direct seawater exposure, the material and plating system should be evaluated carefully.
Used in selected machinery where the rod may encounter moisture or mildly corrosive substances.
Suitable for applications where the piston rod is exposed to rain, humidity or changing weather conditions.
Choosing the correct rod requires more than selecting the stainless steel grade. The following factors should be considered.
The rod diameter must match the hydraulic cylinder design, bearing clearance and seal requirements.
For precision hydraulic applications, dimensional tolerance is important because excessive variation may affect:
Seal performance
Rod guidance
Friction
Leakage
Service life
Chrome plating thickness should be selected according to the application and machining requirements.
A thicker coating is not always automatically better. The plating process must provide uniform coverage, good adhesion and a suitable surface finish.
Surface hardness affects wear resistance and the service life of the rod during repeated movement.
The required hardness should be confirmed according to the application and the manufacturer's technical specifications.
Surface roughness is particularly important for hydraulic cylinder rods.
A surface that is too rough may increase seal wear, while an unsuitable surface may affect lubrication and sealing performance.
The required Ra value should be selected according to the seal manufacturer's recommendations and the cylinder design.
Rod straightness is important for smooth operation and proper alignment inside the hydraulic cylinder.
Poor straightness may increase side loading, friction and uneven seal wear.
Before selecting SUS304, evaluate the actual environment:
Fresh water or humidity
Salt spray
Seawater
Cleaning chemicals
Acidic or alkaline substances
Temperature
Outdoor exposure
For environments with high chloride exposure, SUS316 or another specialized material may be more appropriate.
SUS304 and SUS316 are both commonly used stainless steel grades, but they are not interchangeable in every application.
SUS316 contains molybdenum, which generally provides better resistance to chloride-related corrosion than SUS304.
| Factor | SUS304 | SUS316 |
|---|---|---|
| General corrosion resistance | Good | Generally better |
| Chloride resistance | Limited compared with SUS316 | Better |
| Typical cost | Lower | Higher |
| Common applications | General industrial and outdoor equipment | Marine, chemical and higher-corrosion environments |
If the application involves seawater, high salt concentration or aggressive chemicals, it is important to discuss the material selection with the manufacturer before placing an order.
A typical manufacturing process may include the following steps:
Material selection
Select SUS304 stainless steel according to the application requirements.
Surface preparation
Prepare the rod surface through appropriate machining and cleaning processes.
Precision machining
Process the rod to the required diameter, straightness and dimensional tolerance.
Chrome plating
Apply the chrome coating according to the required plating specifications.
Grinding and polishing
Finish the plated surface to achieve the required dimensional accuracy and surface roughness.
Quality inspection
Inspect dimensions, straightness, surface finish, plating thickness and other customer requirements.
Packaging
Protect the finished rod surface during storage and transportation.
The actual process may vary depending on the manufacturer's equipment, product specifications and quality requirements.
A chrome plated rod is a precision component. Even when the base material is correct, poor surface treatment or inaccurate machining can affect its performance.
Important quality checks may include:
Material verification
Diameter and dimensional tolerance

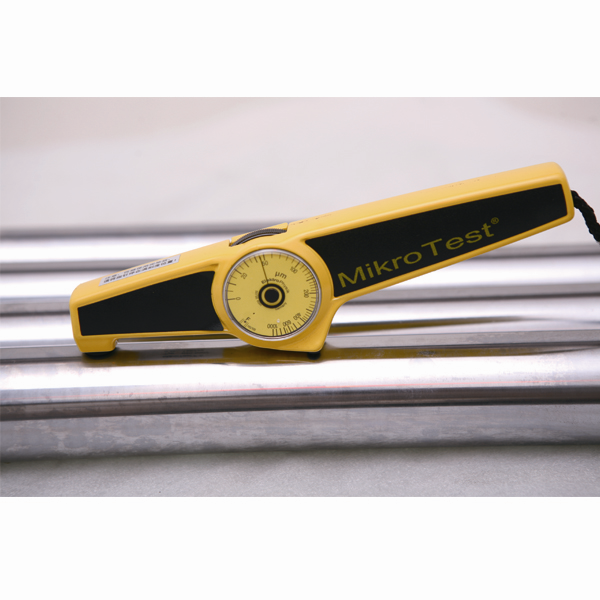

Chrome plating thickness
Surface hardness
Surface roughness
Straightness
Visual inspection
Plating adhesion
Corrosion resistance testing, when required
For demanding applications, customers may also request inspection reports or third-party inspection.
No. SUS304 provides good corrosion resistance, and chrome plating can improve surface durability, but no material or coating is completely corrosion-proof in every environment.
SUS304 generally offers better corrosion resistance, while CK45 is often selected for its mechanical properties and cost-effectiveness. The better choice depends on the working environment and cylinder requirements.
They may be suitable for some marine-related applications, but direct seawater exposure requires careful material and coating selection. SUS316 or another specialized solution may be more appropriate.
A stainless steel rod relies mainly on the corrosion resistance of its base material. A chrome plated stainless steel rod adds a chrome surface to improve surface hardness, wear resistance and surface performance.
Yes. Depending on the manufacturer, customization may include diameter, length, tolerance, chrome plating thickness, surface roughness and packaging requirements.
When purchasing stainless steel chrome plated rods, it is important to evaluate more than price.
A reliable supplier should be able to provide:
Clear material specifications
Consistent dimensional accuracy
Defined chrome plating requirements
Surface roughness information
Quality inspection support
Suitable packaging
Technical communication
Experience with hydraulic applications
Before ordering, provide the supplier with the required diameter, length, quantity, material, surface finish and application environment.
This helps ensure that the selected rod matches the actual working conditions.
